Modular Beach-Themed Eyewear Merchandising Solutions: From Custom Prototyping to Global Rollout

Retail Display Solutions

Modular Beach-Themed Acrylic Display Stand for Pop-Up Stores & Trade Shows

How custom acrylic fabrication, micro-landscape integration, and flat-pack modular engineering resolve high-capacity display limits, sand shedding, and overseas freight costs.

Engineering Specification & Deliverables

Solution Category	Thematic Experiential Retail Display / Flat-Pack Modular Showcase
Merchandise Capacity	14–16 pairs simultaneously (staggered sightlines for sunglasses and optical frames)
Core Substrates	Cast PMMA (Ocean Cyan Tint & Optically Clear), Organic Contour Baseboard, Aliphatic Clear Resin, Genuine Quartz Sand
Structural Mechanism	Modular slide-and-lock slot fittings (100% tool-less manual assembly < 5 minutes)
Packaging Metrics	Precision-milled EPE cushioning inserts + 5-ply export master carton (62% volume reduction vs. pre-assembled fixtures)

1. Challenge Definition: The Operational Gaps of Standard Eyewear Displays

High-end lifestyle and designer sunglasses brands often face a dilemma when setting up seasonal campaigns: off-the-shelf display fixtures are universally designed as sterile, square acrylic staircases or rotating wire towers. While functional for warehousing stock, they completely lack environmental storytelling. In high-traffic environments like international optical expos and beachside pop-up shops, generic fixtures fail to convey product personality and yield brief visitor dwell times.

Our client, an international resort-eyewear brand, required a display solution that matched their summer brand identity while adhering to strict commercial logistics criteria:

Contextual Merchandising: Create a recognizable ocean-and-sand atmosphere that positions vacation sunglasses within their intended natural element.
High Density Without Sightline Compromise: Showcase 14 to 16 distinct eyewear pieces on a standard tabletop footprint without upper brackets casting shadows on lower tiers.
Rapid Multi-Venue Portability: Ensure the entire structure disassembles completely flat without tools, allowing staff to reassemble the display across multiple tour stops.
Low-Tare Handling Weight: Stay within international courier weight tiers to allow express air-shipping without requiring costly pallet freight or timber fumigation.

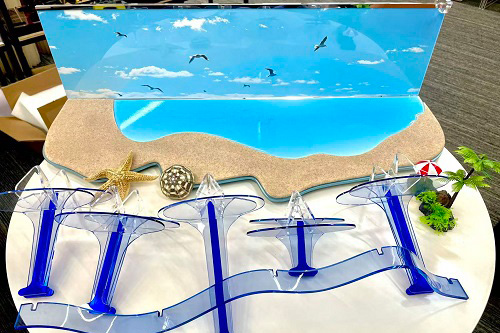

Flat-pack modular components of ocean beach sunglasses display stand — Figure 2: Modular component breakdown ready for flat packing and rapid field deployment.

White background studio view of modular acrylic sunglasses display stand — Figure 3: Studio verification of bracket alignment and transparency on a clean white backdrop.

2. Technical Engineering: Prototyping Diagnostics & Iteration

Translating natural, fluid beach curves into industrial-grade PMMA (acrylic) components revealed three structural challenges during Phase 1 prototyping:

Problem 1: CNC Contour Faceting & Visual Friction

Initial 3-axis CNC router passes produced subtle faceting along the irregular shoreline edge. These sharp facets broke the natural organic aesthetic and created stress-concentration zones prone to chipping during packing.

Problem 2: Harmonic Deflection on High-Tier Columns

To build visual depth, vertical supports stood at varying heights up to 280 mm. When fully merchandised with high-mass acetate and polarized glass frames, the tallest tier displayed a 3.5 mm deflection and slight horizontal wobbling during retail interactions.

Problem 3: Sand Particulate Migration onto Optical Surfaces

Standard water-based adhesive spray failed to lock quartz sand grains under simulated road transit vibrations. Loose quartz grains sifted inside the package, presenting severe abrasive hazards to delicate multi-coated lenses and polished acrylic surfaces.

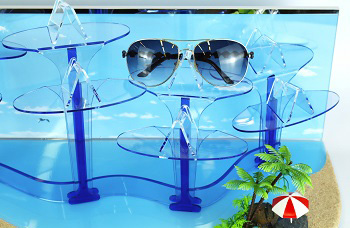

Detail view of dual-wing transparent eyewear nose bridge support brackets — Figure 4: Engineered dual-wing nose pads for frame stability.

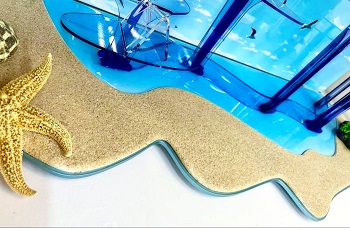

Close-up of resin-sealed real sand base texture and CNC diamond polished acrylic edge — Figure 5: Zero-shedding resin-sealed sand and polished edge.

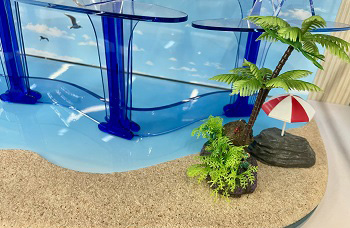

Miniature beach palm tree decor integrated into acrylic baseboard — Figure 6: Hand-crafted micro-landscape scene accents.

Implemented Engineering Revisions:

CNC Toolpath Recalibration: We implemented a 5-axis continuous milling program with reduced feed rates (1800 mm/min), followed by high-speed diamond fly-cutting and flame edge polishing to achieve a natural, liquid-smooth coastline profile.
Rigidity & Interlocking Upgrades: Column thickness was increased from 4.0 mm to 6.0 mm on critical vertical members. At the base junction, we designed a self-centering mortise-and-tenon acrylic slot that distributes downward load vectors across the baseplate, reducing dynamic wobble to less than 0.3 mm.
Low-Viscosity Resin Matrix Infusion: We replaced conventional surface glue with a deep-penetrating, crystal-clear aliphatic epoxy polymer. The resin flows through the entire 3 mm sand layer via capillary action, curing into a rock-solid, dust-free textured composite that retains real sand tactile grain without shedding a single particle.
Batch-Controlled Cast PMMA: Sourcing pure MMA monomer casting sheets from a single manufacturing lot eradicated batch-to-batch refraction shift, ensuring clean 92% light transmittance with consistent ocean-blue coloration.

3. Quality Control: Assembly Tolerances & Volume Manufacturing

High-end display props often feature tight manufacturing tolerances. When multiple irregular components interlock without mechanical fasteners, cumulative manufacturing errors can cause slot binding or loose connections.

To guarantee that overseas store associates can assemble each unit in under five minutes, our workshop enforces a two-tier verification workflow:

Laser Go/No-Go Gauge Testing: All interlocking slots are checked against a ±0.15 mm mechanical tolerance window to ensure smooth friction-fit insertion without requiring mallet force.
100% Pre-Assembly Protocol: Every production unit undergoes full physical assembly and load testing in our dust-controlled cleanroom. Inspectors populate every tier with weighted test frames to verify sightline angles and load balance before disassembling the unit for packaging.

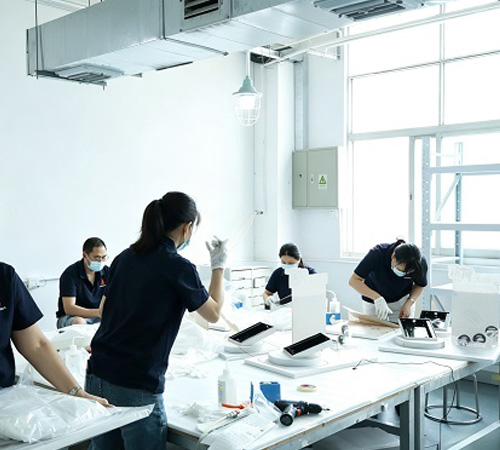

Cleanroom assembly line and manual inspection of acrylic display components — Figure 7: 100% pre-assembly inspection and load balance checks in our factory workshop.

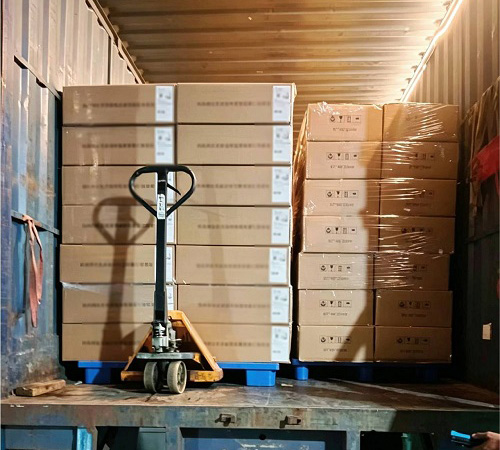

Reinforced 5-ply export master cartons palletized and loaded into ocean freight container — Figure 8: High-density flat-pack cartons palletized for overseas container shipment.

4. Flat-Pack Packaging Architecture & Transit Protection

Transporting fragile acrylic structures and detailed miniature elements overseas presents clear freight risks. Pre-assembled displays often trap air inside the carton, causing volumetric weight surcharges that exceed the product's value. Conversely, poorly packed acrylic risks scratching from friction in transit.

Our custom packaging approach pairs structural defense with efficient packing volume:

Electrostatic Surface Masking: High-clarity panels retain optical-grade, residue-free PE masking films throughout manufacturing and packing, guarding against micro-scratches.
Die-Cut CNC EPE Foam Cavities: Each component nests in a custom-routed, closed-cell pearl foam insert. By organizing parts across two flat layers, parts remain isolated from impact and abrasion.
Hardened Drop-Tested Shell: Double-wall 5-ply kraft corrugated cartons (ECT-44 rated) with reinforced corner protectors safeguard against side-impact punctures during parcel hub handling.

5. Results & Commercial Performance

Delivered Business Impact:

62% Packing Volume Reduction: Switching from assembled units to a flat-pack system reduced per-unit shipping volume from 0.082 m³ to 0.031 m³, generating freight savings of roughly $24 per unit on air courier routes.
Zero Field Returns or Breakage: Across thousands of units shipped internationally, resin sand stabilization and precision EPE packing kept transit damage and scratching rates at 0%.
Increased Retail Dwell Time: Client store tracking confirmed higher customer dwell times at beach-themed counters compared to adjacent standardized glass display towers.

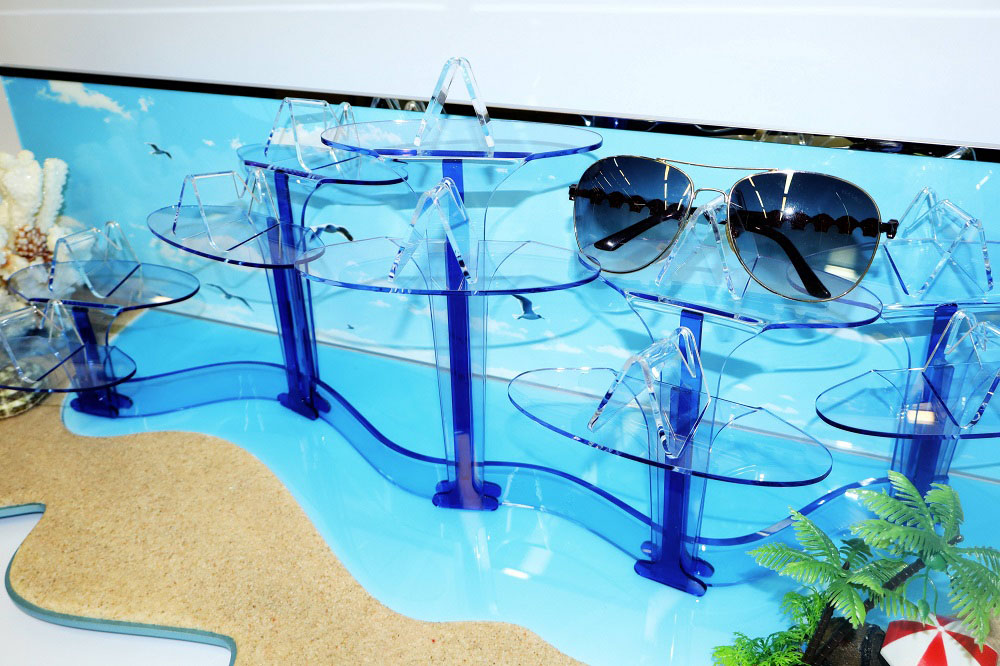

High angle close-up of complete coastal sunglasses display showing multi-level tiered layout — Figure 9: High-angle view showcasing tiered wave brackets, load balance, and clean visual spacing.

Frequently Asked Engineering & Procurement Questions

Q: Can the overall dimensions and tier count be adapted for smaller countertop spaces?

Yes. Our engineering relies on parametric 3D CAD modeling. We can scale base dimensions and adjust vertical column counts to support 6, 10, or 20 frames without altering core interlocking mechanical joints.

Q: How does the resin-locked sand surface handle cleaning and dust removal?

The aliphatic resin forms a non-porous seal around every quartz sand particle. Retail personnel can wipe the sand base with a microfiber cloth or clean it with low-pressure compressed air without dislodging grains.

Q: What is the typical lead time from digital prototype approval to volume production dispatch?

Initial CNC physical samples finish within 5–7 business days. Following physical sample approval, standard production runs of 500 to 2,000 units require approximately 18–25 calendar days, including 100% pre-assembly testing.
